Making a NFT Marker with NFT-Marker-Creator

Home screen of the NFT-Marker-Creator webapp

Introduction

In this tutorial I will explain the step by step creation of NFT markers to use with the jsartoolkit5 augmented reality project. This article is intended for all creators who want to create their augmented reality web applications. A minimum knowledge of some concepts is however necessary to face the topic.

NFT (Natural Feature Tracking) markers are markers that are used to trace predetermined images. In essence it is a markerless technology, that is, without the use of markers. For a distinction on the types of markers I refer you to this article and at the bottom you will find other useful resources.

Materials needed

For the creation of the NFT markers it is essential to have a image in jpg or png color format and the necessary software: NFT-Marker-Creator.

Although it is possible to create NFT markers with different resolutions and pixel dimensions, it is strongly recommended to generate the NFT markers with an optimal resolution and size: a total size in pixels (base x height) between 3,300,000 - 3,500,000 pixels and dpi of at least 200 optimal 300.

You can use the online version of the application or the command line version. Below I will explain the two ways.

Generate the NFT marker

Via Webapp

You can use the Web App by going to this site: carnaux.github.io/NFT-Marker-Creator the page will look like this:

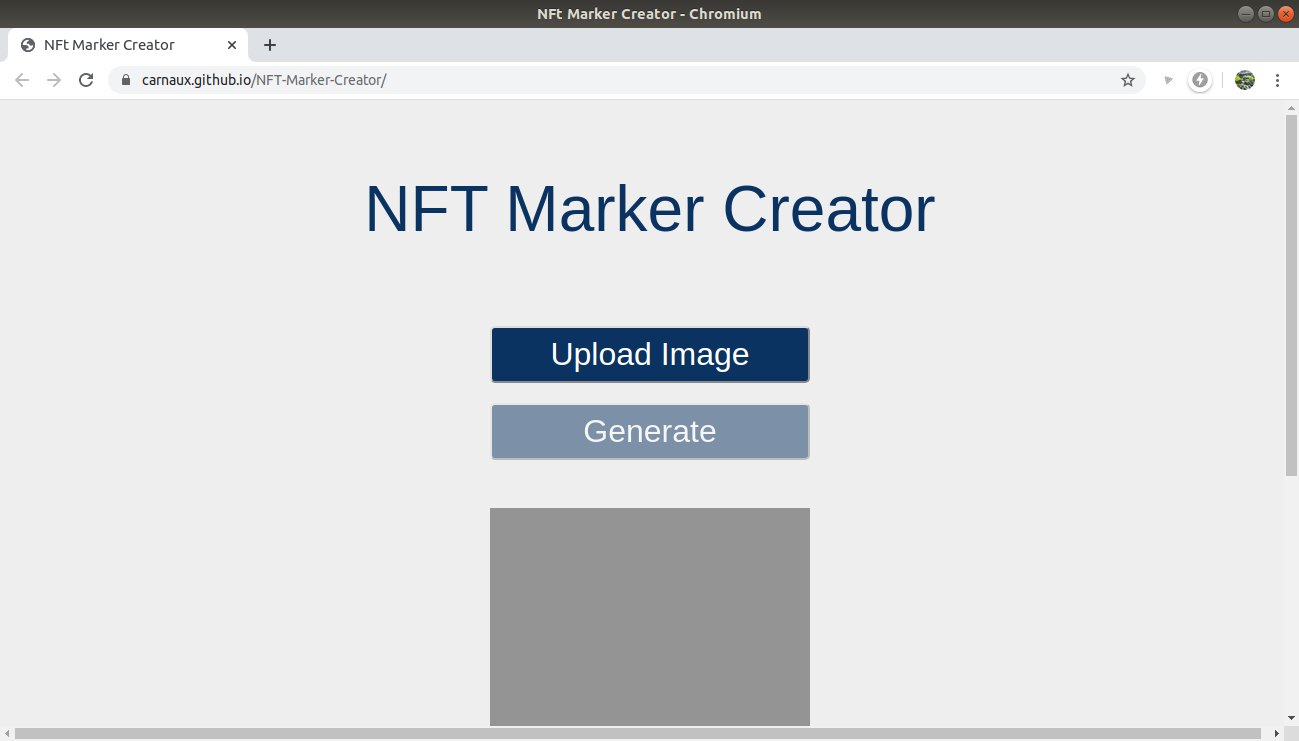

Home page NFT-Marker-Creator webapp

Web app for creating NFT markers

click on Upload Image a window will open where you can access the folder containing the image file. For example in this case we are going to use the reference image pinball.jpg in the jsartoolkit5 project:

Choose an image for NFT-Marker-Creator

Window for choosing the image.

at this point your window will look like this:

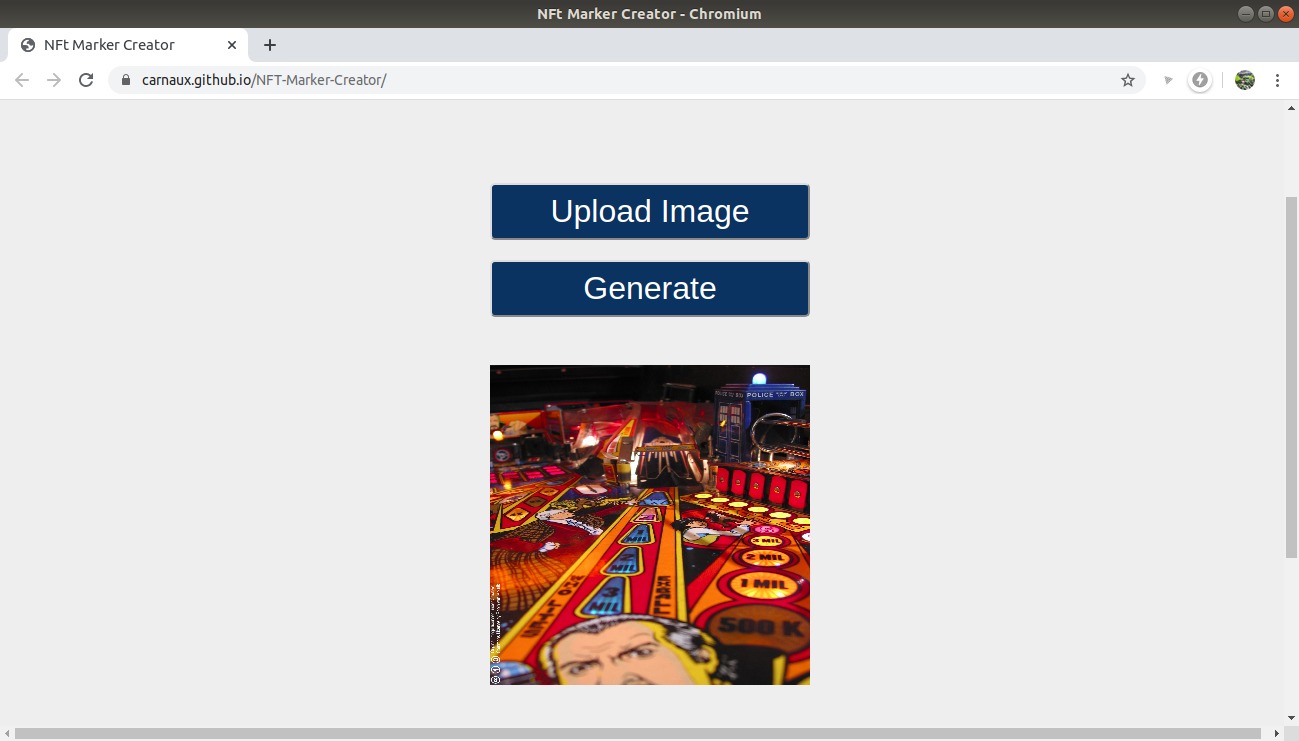

Uploaded image into the NFT-Marker-Creator webapp

Screenshot with image uploaded to the NFT-Marker-Creator webapp

the page also shows the confidence level, that is, an evaluation of the image on the basis of which the image is more or less suitable: the more stars there are, the better. Let’s say it is better that I have at least 3 to have enough descriptors.

You just have to click on the button Generate, the program will start immediately and in a short time three files will be created in this case: pinball.fset pinball.iset and pinball.fset3.

Via command line

You can also generate your own NFT markers with the command line application (i.e. via the console). In this case, however, it is necessary to install nodejs follow the instructions for installation on the site. You also need to download NFT-Marker-Creator: you can download the entire project as a .zip file or via git.

Download NFT-Marker-Creator as a .zip

Navigate to the main page of github.com/Carnaux/NFT-Marker-Creator, at the top right click on the green button Clone or download should appears a window like this:

Download the zip file of the NFT-Marker-Creator project

Window to download the zip file.

click on Download ZIP, the package will be downloaded shortly. Extract the files in a folder of your choice and in a command window (console) type:

cd NFT-Marker-Creator-master

then go to Launch the node app.

Download the project with git (advanced level)

Git is a distributed version control program used by developers. In this way, updates can also be periodically downloaded. First of all install git. Once installed in the folder where you want to download NFT-Marker-Creator, type in a command line terminal:

git clone https://github.com/Carnaux/NFT-Marker-Creator.git

in this way the entire project will be downloaded, enter the folder:

cd NFT-Marker-Creator

Launch the node app

Launch the node app (with - i you can indicate the path of the image), in this case the pinball.jpg resides in the same folder as app.js:

node app.js -i pinball.jpg

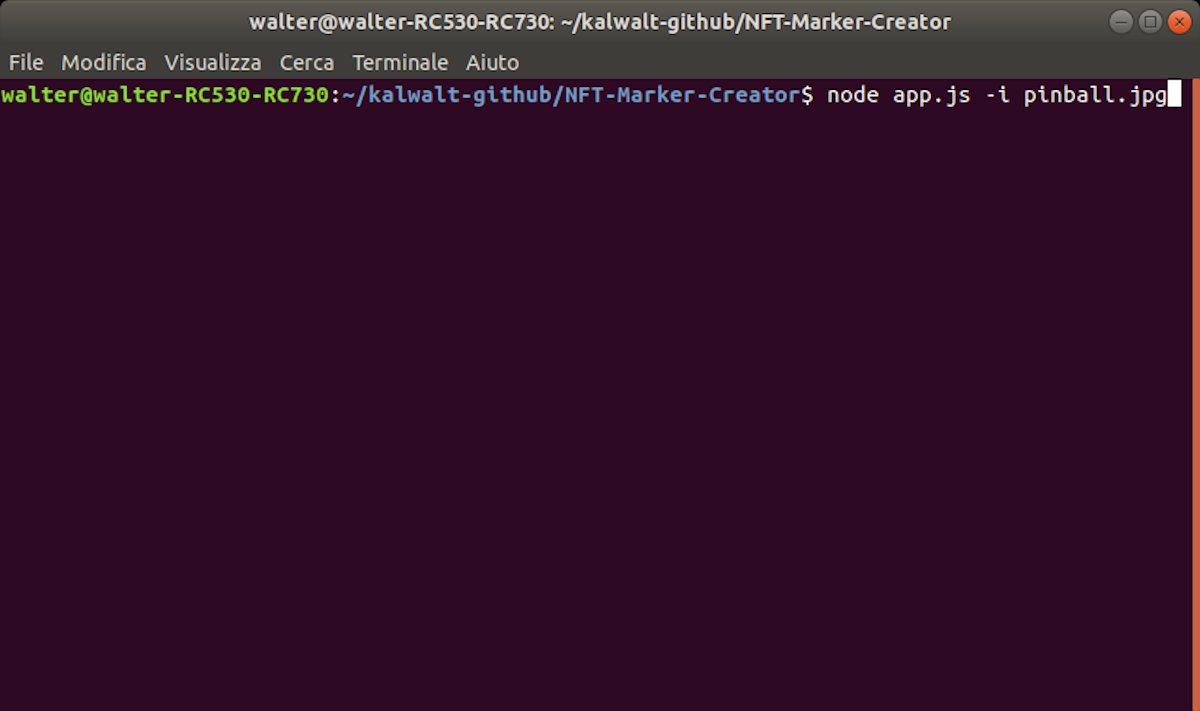

see also in the example image:

Launching the program with an image

Launching the program with an image

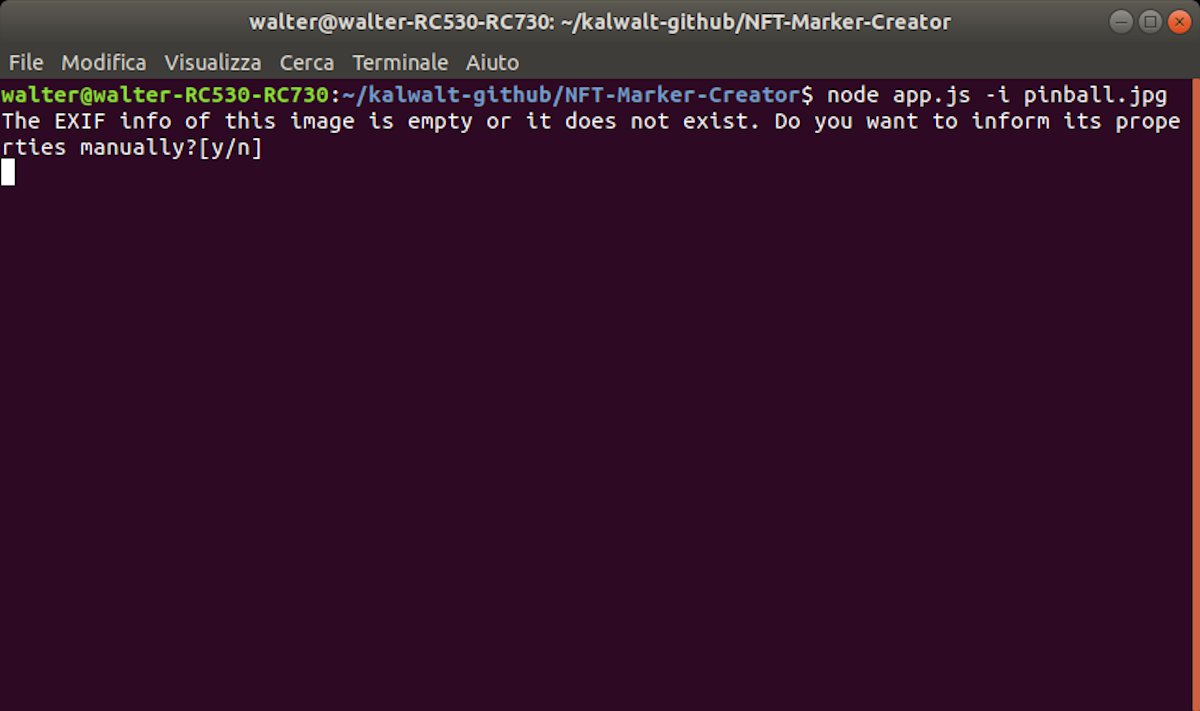

send and the program will ask you for the exif data type Yes (Y):

Dati exif

Enter the exif data

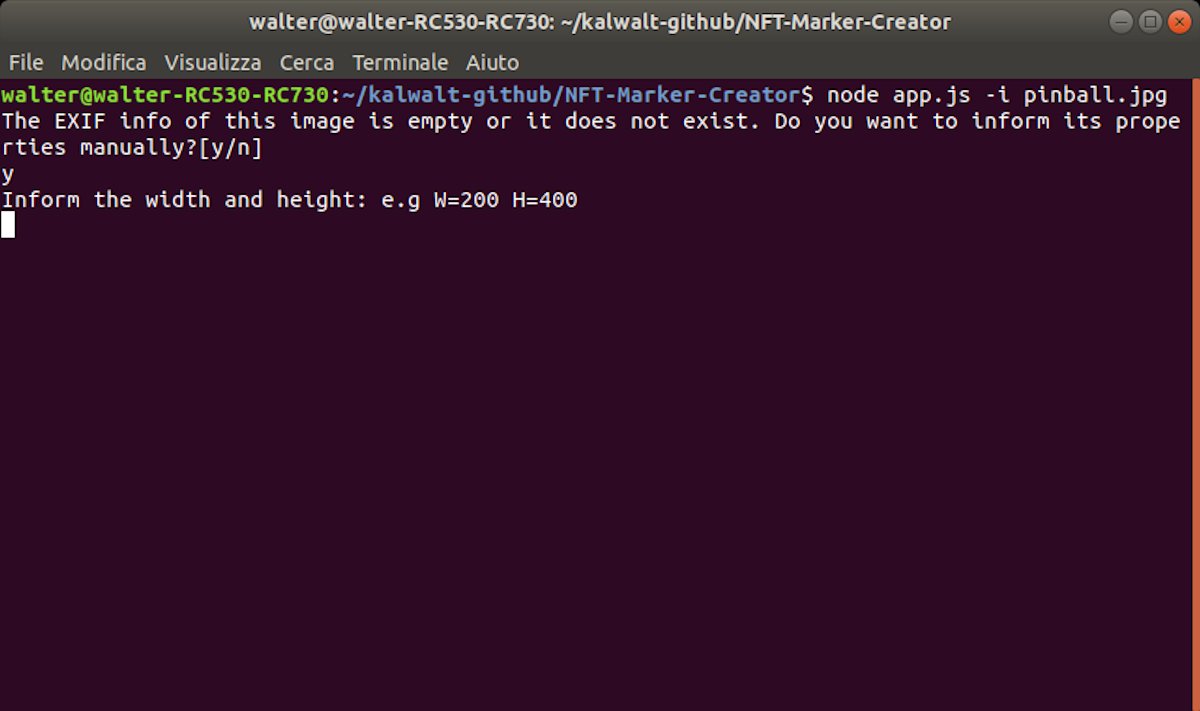

then the program will ask you to enter the image’s width (W) and height (H) data:

Width and height of the image for the NFT marker

Width and height of the image for the NFT marker

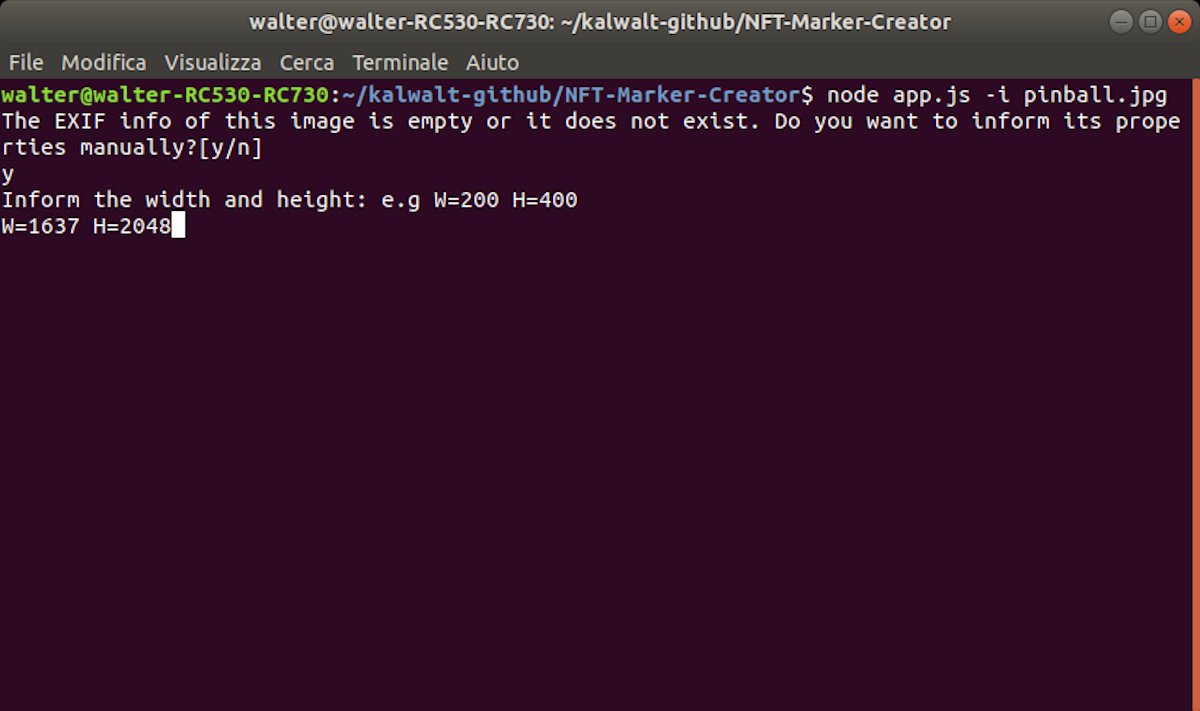

In this case W=1637 and H=2048, the window should look like this:

Width and height of the image

Width and height of the image for the NFT marker

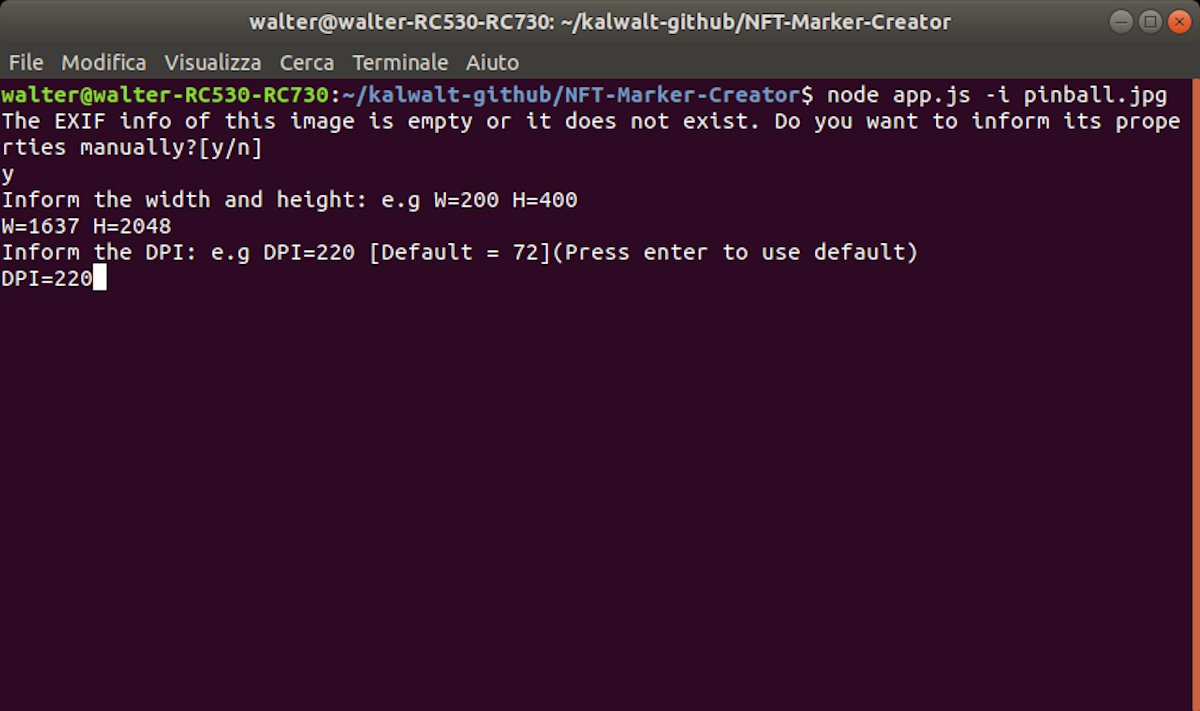

in the next step you will be asked to enter the dpi:

Image Dpi

Image Dpi

Once these final data have been entered, the program will start processing the image to create the files:

NFT-Marker-Creator with the node app and start of procedure

The NFT marker begins to be generated ...

In a short time the software will generate the files and ask you to save them:

End of NFT marker creation procedure

The NFT marker has been generated!

In the end the confidence level is also shown as for the web app.

Final conclusions

The easiest way to create your own NFT markers is to use the Webapp. You can also use the one present in the repository.

It is strongly recommended to generate your own NFT markers with the best possible image in terms of pixels numbers (width and height and therefore total pixels) and dpi:

  • pixels > 3.000.000 (optimal 3.500.000)
  • dpi > 200 (optimal 300)

Low values of these variables do not ensure that the image will always be traced …

Another very important factor is the confidence level: I recommend reading this article in the wiki of the project.

Useful resources

NFT-Marker-Creator wiki: github.com/Carnaux/NFT-Marker-Creator/wiki

Artoolkit-docs:

marker-nft-utilities: github.com/kalwalt/artoolkit-docs/blob/master/3_Marker_Training/marker_nft_utilities.md
